• Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 96843

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

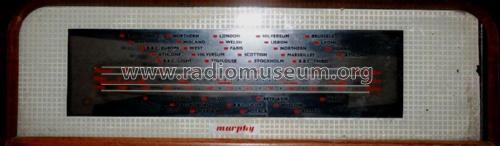

  • Model: A168 - Murphy Radio Ltd.; Welwyn
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 21.5 x 15 x 7.75 inch / 546 x 381 x 197 mm
  • Net weight (2.2 lb = 1 kg)
  • 18 lb 0 oz (18 lb) / 8.172 kg
  • Price in first year of sale
  • 285.00 Hfl
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
