For model A182, Murphy Radio Ltd.; Welwyn Garden City:
A Murphy A182 table radio, front view, Ebay UK item 401056329451 seller paul*timberman

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6C9_UK 6F15 6LD20 6P25
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A182 - Murphy Radio Ltd.; Welwyn
Notes Metal rectifier.
Source of data Radio And Television Servicing books (R&TVS)

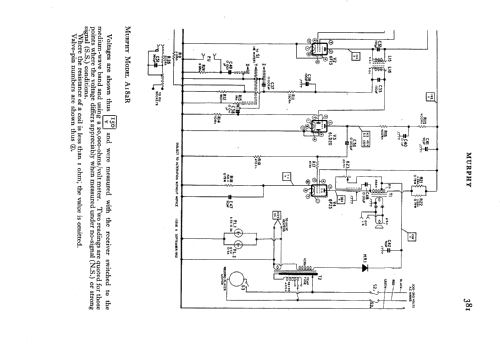

Literature/Schematics (1) Radio And Television Servicing books (R&TVS)

Model page created by Keith Staines. See "Data change" for further contributors.
