For model A316G, Murphy Radio Ltd.; Welwyn Garden City:

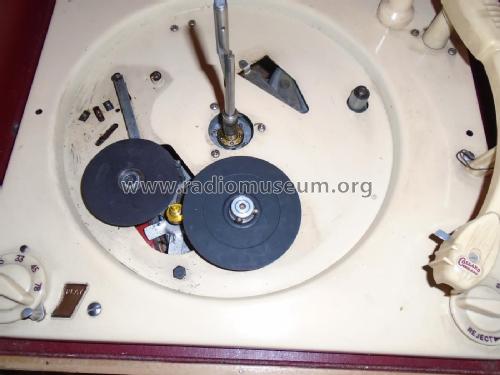

A 1958 Murphy A316G portable record player with a Collaro Conquest autochanger.

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1958 Category: Sound/Video Recorder and/or Player
Valves / Tubes 1: PCL83
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: A316G - Murphy Radio Ltd.; Welwyn
Material Leather / canvas / plastic - over other material
Dimensions (WHD) 16.75 x 9 x 18.25 inch / 425 x 229 x 464 mm
Notes Transportable record player. Released in March 1958 price £23 2s 0d. Collaro Conquest 4 speed automatic record changer with a Collaro "Studio 0" crystal cartridge. Metal rectifier. Elliptical loudspeaker 7 x 4 inch.
Net weight (2.2 lb = 1 kg) 26 lb 0 oz (26 lb) / 11.804 kg
Price in first year of sale 23.00 GBP
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Peter Hoddow. See "Data change" for further contributors.
