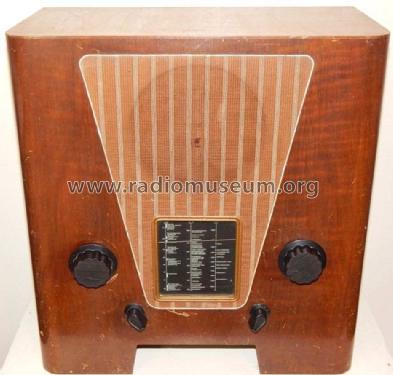

A70; Murphy Radio Ltd.; (ID = 2282793) Radio
Murphy Radio Ltd.;: A70 [Radio] ID = 2282793 933x890
Select picture or schematic to display from thumbnails on the right and click for download.
For model A70, Murphy Radio Ltd.; Welwyn Garden City:
Ebay UK item 222976066019 seller nelsonsblastfromthepast

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: TH41 VP41 HL42DD Pen45 UU6
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-125, 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A70 - Murphy Radio Ltd.; Welwyn
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 18 x 19.25 x 9.25 inch / 457 x 489 x 235 mm
Notes Design: R.D.Russell. Optional extras: pushbutton unit and remote control unit. Besides valves and power supply the receiver layout and the basic chassis are similar chassis to Murphy D70 AC/DC model.
Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)
Source of data Radio! Radio!
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
