• Country
• Great Britain (UK)

• Manufacturer / Brand
• Murphy Radio Ltd.; Welwyn Garden City

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 185073

• Number of Transistors
• 8

• Semiconductors
• PXA124 PXA123 PXA126 PXA101 PXA101 PXB103 PXC131 PXC131

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 2 x 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

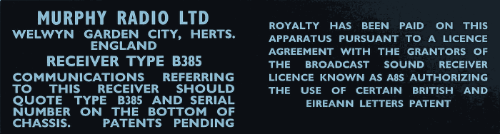

• Model: B385 [Export] - Murphy Radio Ltd.; Welwyn

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 241 x 165 x 76 mm / 9.5 x 6.5 x 3 inch

• Notes
• The original English model B385 has Broadcast (MW), Long Wave and only 7 transistors.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jos van den Broek. See "Data change" for further contributors.
