For model B485, Murphy Radio Ltd.; Welwyn Garden City:

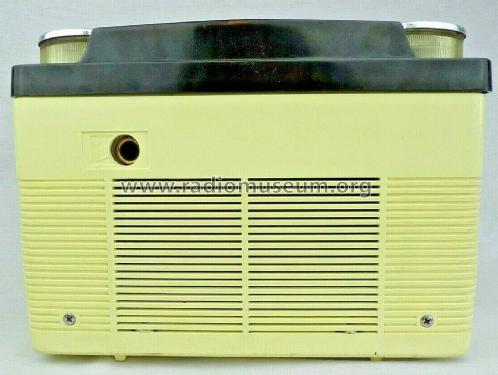

My 1961 Murphy MW/LW radio with gold trim and tinted perspex dials.

Country:  Great Britain (UK)
Manufacturer / Brand:  Murphy Radio Ltd.; Welwyn Garden City
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: PXA102 PXA102 PXA101 PXA101 PXB103 PXC131 PXC131
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 × 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: B485 - Murphy Radio Ltd.; Welwyn
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.1 x 7.75 x 3.5 inch / 257 x 197 x 89 mm
Notes Later examples have Mullard transistors: OC44, 2× OC45, AF117, OC81D, 2× OC81. Released February 1961, price £22 6s 0d including purchase tax. Leather carry case included. Socket for car aerial.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 22.00 GBP

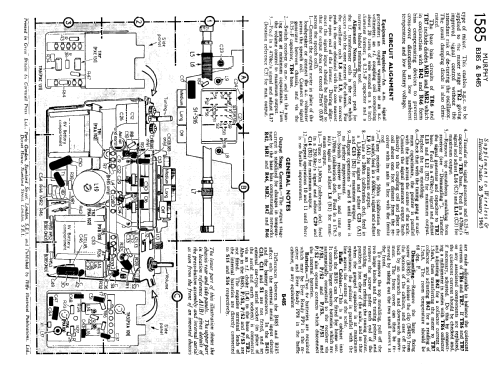

Mentioned in Trader Service sheet 1585

Model page created by Howard Craven. See "Data change" for further contributors.
