• Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 96008

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 117 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 100-108; 109-120; 200-214; 215-232; 233-250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

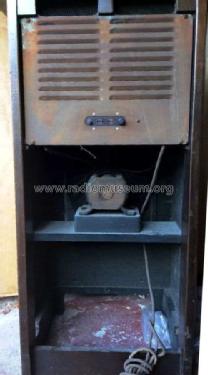

  • Model: Radiogram A26RG - Murphy Radio Ltd.; Welwyn
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • 5-valve, AC-powered, superhet radiogram.

  • Price in first year of sale
  • 24.50 GB £
  • Author
  • Model page created by Manuel Marabuto. See "Data change" for further contributors.
