• Country
• Great Britain (UK)

• Manufacturer / Brand
• Murphy Radio Ltd.; Welwyn Garden City

• Year
• 1952

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 143022

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 10F1 10F1 10C2 10F1 10F1 20D1 10F1 10C2 20P1 U281 U25 10F1 20D1 20P3 20L1 CRM123

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

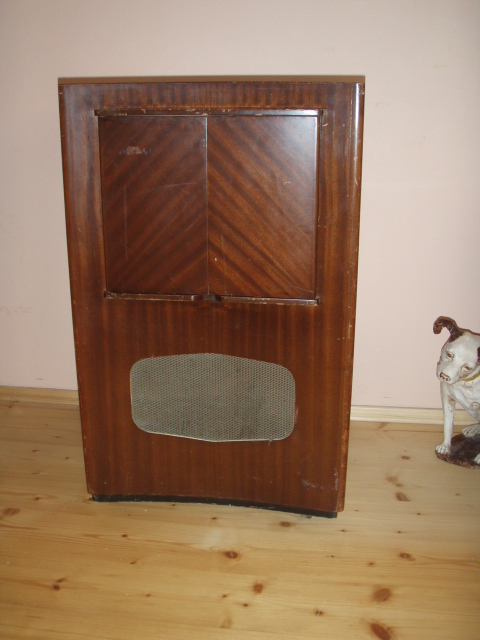

• Model: V202CA - Murphy Radio Ltd.; Welwyn

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 530 x 830 x 430 mm / 20.9 x 32.7 x 16.9 inch

• Notes
• Murphy V202CA;
  12" 405 lines B/W TV with GB standard CCIR A single channel VHF band I tuner (5 changeable RF units).

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1152/T57)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
