• Country
• Spain

• Manufacturer / Brand
• Musicson; Mislata (Valencia)

• Year
• 1990 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 361889

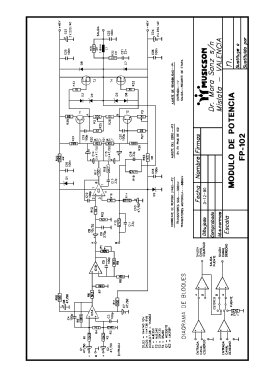

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• LM318

• Number of Transistors
• 4

• Semiconductors
• MJE350 MJE340 2SK135 2SJ50 MC33078 1N4740 1N4736 1N4003

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 200 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Professional FET Power Amplifier FP-102 - Musicson; Mislata Valencia

• Shape
• Rack

• Notes

• Musicson, Professional FET Power Amplifier FP-102

  Módulo de potencia estéreo 2 x 100 W RMS a 4 Ω

  El esquema no muestra la fuente de alimentación interna.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
