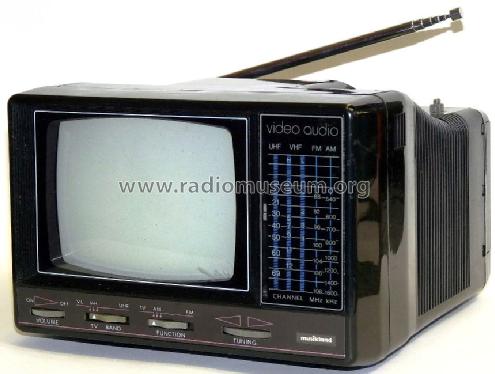

Mini B/W-TV with Radio 31-31130

Mini B/W-TV with Radio 31-31130; Musikland; (ID = 714812) TV Radio Mini B/W-TV with Radio 31-31130; Musikland; (ID = 714807) TV Radio
Mini B/W-TV with Radio 31-31130; Musikland; (ID = 714808) TV Radio Mini B/W-TV with Radio 31-31130; Musikland; (ID = 714806) TV Radio
Mini B/W-TV with Radio 31-31130; Musikland; (ID = 714810) TV Radio Mini B/W-TV with Radio 31-31130; Musikland; (ID = 714811) TV Radio
Mini B/W-TV with Radio 31-31130; Musikland; (ID = 714813) TV Radio
Use red slider bar for more.
Mini B/W-TV with Radio 31-31130; Musikland; (ID = 714812) TV Radio
Musikland;: Mini B/W-TV with Radio 31-31130 [TV Radio] ID = 714812 780x679
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini B/W-TV with Radio 31-31130, Musikland; (Handelsmarke) Wien

Country:  Austria
Manufacturer / Brand:  Musikland; (Handelsmarke) Wien
Year: 1986 ?? Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Mini B/W-TV with Radio 31-31130 - Musikland; Handelsmarke Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 200 x 135 x 200 mm / 7.9 x 5.3 x 7.9 inch
Notes Mini-TV/Radio Kombination (Bildschirmdiagonale 13 cm), Frequenzbereiche: Radio AM 525-1605 kHz, FM 88-108 MHz, TV-VHF CH 2-12, UHF CH 21-69, 7 tlg. Teleskopantenne (80 cm), ext Antenneneingang über Klinkenbuchse 3,5 mm, Anschlüsse für Kopfhörer und ext. Netzgerät (DC-12-14 Volt), erforderlicher Batteriesatz 9 x 1,5 Volt. Aufstellbügel, Made in Taiwan 50-97-1031.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
