CA-5E; Nakamichi Co.; Tokyo (ID = 566958) Ampl/Mixer

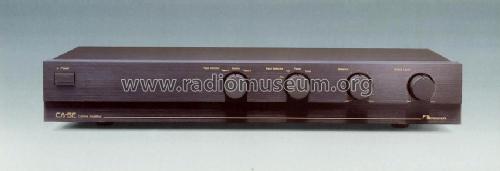

Nakamichi Co.; Tokyo: CA-5E [Ampl/Mixer] ID = 566958 852x293
Select picture or schematic to display from thumbnails on the right and click for download.
For model CA-5E, Nakamichi Co.; Tokyo:

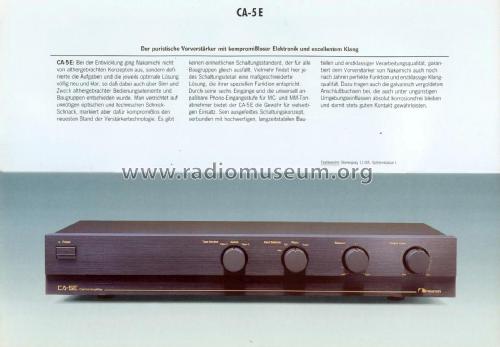

Original propspekt in 1987.

Country:  Japan
Manufacturer / Brand:  Nakamichi Co.; Tokyo
Year: 1985–1987 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CA-5E - Nakamichi Co.; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 63 x 289 mm / 17.1 x 2.5 x 11.4 inch
Notes Vorverstärker mit 6 Eingängen. Phono-Eingangsstufe für MC- und MM-Tonabnehmer universell anpassbar. Max. Endstufen-Ausgang 16 V.
Gehäuseausführung Schwarz-Metallic.
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
