Nakamichi Co.; Tokyo: Dragon Auto Reverse Cassette Deck [R-Player] ID = 2022206 1400x430
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1983–1987 | Category: Sound/Video Recorder and/or Player | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Audio-Amplification |
|---|---|
| Wave bands | - without |
| Details | Cassette-Recorder or -Player; Radio Control (+Remote Wire etc) |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Dragon Auto Reverse Cassette Deck - Nakamichi Co.; Tokyo |
| Material | Metal case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 450 x 135 x 300 mm / 17.7 x 5.3 x 11.8 inch |

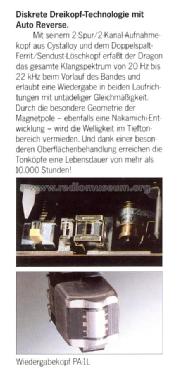

| Notes | Ausstattung Nakamichi Dragon: 3 Tonköpfe; 4 Motoren, 2 Capstan DirectDrive; Autoreverse; automatische Azimuthjustage; Dolby B, C; Aussteuerung und Bias manuell. Testtongenerator 400 Hz / 15 kHz eingebaut. Optionale Fernsteuerung: RM-20 |
| Net weight (2.2 lb = 1 kg) | 9.5 kg / 20 lb 14.8 oz (20.925 lb) |
| Price in first year of sale | 4'500.00 DM |
Model page created by Klaus Ortwein. See "Data change" for further contributors.
