Nanaola Clock Radio 8NC-123 (Japan 506)

Toshiba Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Toshiba Corporation; Tokyo

Year
1968 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
124027

- alternative name: Shibaura Engineering Works
- Brand: Tokyo Shibaura

Schematics

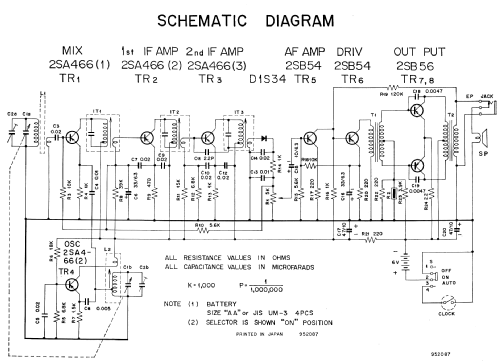

Nanaola Clock Radio 8NC-123 ; Toshiba Corporation; (ID = 2102241) Radio — Toshiba Corporation; Nanaola Clock Radio 8NC-123 (3)

Nanaola Clock Radio 8NC-123 ; Toshiba Corporation; (ID = 2102235) Radio — Toshiba Corporation; Nanaola Clock Radio 8NC-123 (1)

Nanaola Clock Radio 8NC-123 ; Toshiba Corporation; (ID = 2102236) Radio — Toshiba Corporation; Nanaola Clock Radio 8NC-123 (1)

Nanaola Clock Radio 8NC-123 ; Toshiba Corporation; (ID = 2102238) Radio — Toshiba Corporation; Nanaola Clock Radio 8NC-123 (1)

Nanaola Clock Radio 8NC-123 ; Toshiba Corporation; (ID = 2102239) Radio — Toshiba Corporation; Nanaola Clock Radio 8NC-123 (1)

Nanaola Clock Radio 8NC-123 ; Toshiba Corporation; (ID = 2102240) Radio — Toshiba Corporation; Nanaola Clock Radio 8NC-123 (1)

Nanaola Clock Radio 8NC-123 ; Toshiba Corporation; (ID = 2111726) Radio — Toshiba Corporation; Nanaola Clock Radio 8NC-123 (2)
Sammlung von Eckhard Wegner

Nanaola Clock Radio 8NC-123 ; Toshiba Corporation; (ID = 407512) Radio — Toshiba Corporation; Nanaola Clock Radio 8NC-123 (1)

Nanaola Clock Radio 8NC-123 ; Toshiba Corporation; (ID = 407513) Radio — Toshiba Corporation; Nanaola Clock Radio 8NC-123 (1)

Nanaola Clock Radio 8NC-123 ; Toshiba Corporation; (ID = 407514) Radio — Toshiba Corporation; Nanaola Clock Radio 8NC-123 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
8

Semiconductors
2SA466 2SA466 2SA466 2SA466 2SB54 2SB54 2SB56 2SB56

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / 4 x (AA) 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

Power out
0.24 W (max.)

Material
Bakelite or Plastics (type unknown)

from Radiomuseum.org
Model: Nanaola Clock Radio 8NC-123 - Toshiba Corporation; Tokyo

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
190 x 85 x 45 mm / 7.5 x 3.3 x 1.8 inch

Notes

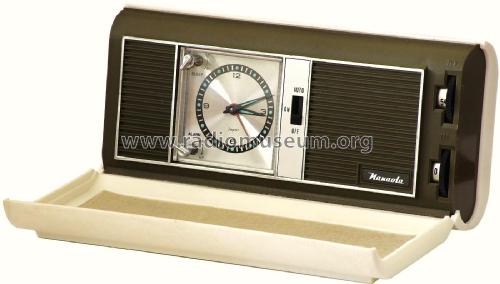

Nanaola brand AM travel clock radio , cover lid to be closed when not in use.

Das mechanische Uhrwerk kann mit Klingel oder Radio wecken. Es hat eine Laufzeit von 24 Stunden. Eine Ohrhörerbuchse ist vorhanden, der Ohrhörer gehört zum Lieferumfang.

Im Gerät sind gleiche Baugruppen verwendet worden wie beim 8NC-115 . Der Aufbau und das Gehäuse wurde geändert.

Made in Japan 506

Net weight (2.2 lb = 1 kg)
0.4 kg / 0 lb 14.1 oz (0.881 lb)

Price in first year of sale
99.00 DM

Source of data
- - Data from my own collection

Author
Model page created by Eckhard Wegner. See "Data change" for further contributors.
