• Country
• Japan

• Manufacturer / Brand
• Nanaola (Nanao Radio Co., Ltd. - NRC); Tokyo

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 212414

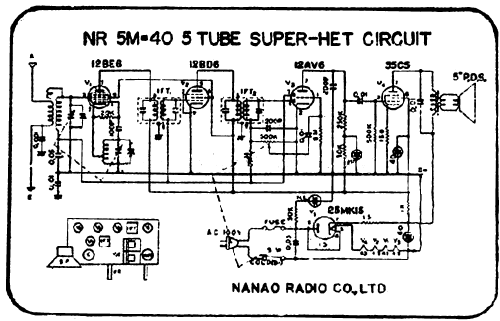

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BD6 12AV6 35C5 25MK15

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 90-110 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

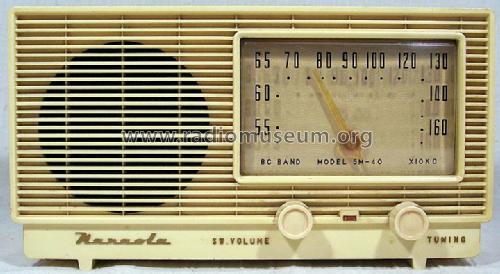

• Model: Super 5M-40 - Nanaola Nanao Radio Co., Ltd.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 11.5 x 6.5 x 5 inch / 292 x 165 x 127 mm

• Notes
• Nanaola Super 5M-40;
  Type 5P-25 speaker.

• Net weight (2.2 lb = 1 kg)
• 5.25 lb (5 lb 4 oz) / 2.384 kg

• Author
• Model page created by a member from A. See "Data change" for further contributors.
