Hongxing 红星 (Red Star) 741-1

Hongxing 红星 741-1; Nanjing 南京东方无线... (ID = 804634) Radio
Use red slider bar for more.
Hongxing 红星 741-1; Nanjing 南京东方无线... (ID = 804634) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  People's Republic of China
Manufacturer / Brand:  Nanjing 南京东方无线电厂 Nanjing Eastern Radio Factory; Nanjing
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 3DG200 3DG200 3DG200 3DG200 3DG200 3AX31B 3AX31B 2CP10 2CP10 2AP9 2AP9
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4.5 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Hongxing 红星 741-1 - Nanjing 南京东方无线电厂
Material Modern plastics (no Bakelite or Catalin)
Notes The model Hongxing 红星 741-1 (Red Star) has the following key features 主要性能: Frequency range 频率范围: broadcast band 535 - 1605 kc. Set audio output 额定功率: 100 mW (200 mW). Electric power consumption 电源消耗 at zero signal 零信号: is not given. The IF is 465 kc. Loudspeaker impedance is not given. 4 diodes.

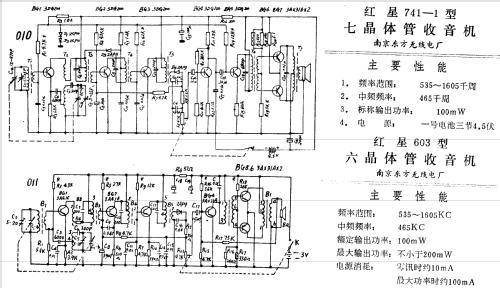

Literature/Schematics (1) 02-Radio Manual unknown date, 380 pages (page 362, drawing 010.)

Model page created by Ernst Erb. See "Data change" for further contributors.
