Panda 熊猫 609

Panda 熊猫 609; Nanjing 南京无线电厂 (ID = 802009) Radio
Use red slider bar for more.
Panda 熊猫 609; Nanjing 南京无线电厂 (ID = 802009) Radio
Nanjing 南京无线电厂: Panda 熊猫 609 [Radio] ID = 802009 933x930
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panda 熊猫 609, Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing:

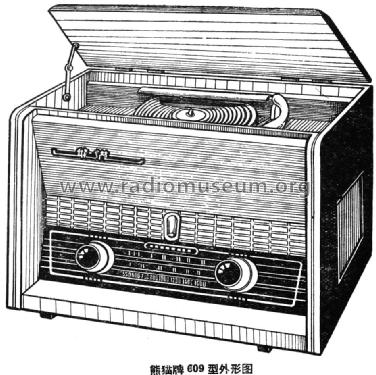

Picture from PRC: 11-Radio manual (green 2) 1965, with 220 pages, page 193, as a reference when somebody is uploading real photos - and as reference for collectors, comparing models.

Country:  People's Republic of China
Manufacturer / Brand:  Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6А2П 6K4_China 6Н2П 6P1_China 6E1_China 6Z4_China
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Panda 熊猫 609 - Nanjing 南京无线电厂 Nanjing Radio
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes The model Panda 熊猫 609 (Xiongmao) receives the broadcast band 520 - 1600 kc and SW 3.8 - 8 mc plus 8 - 16 mc.
Literature/Schematics (1) 11-Radio manual (green 2) 1965, with 220 pages. (page 193.)

Model page created by Ernst Erb. See "Data change" for further contributors.
