Hongxing 红星 Red Star 504-5

Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 787412) Radio

Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 787414) Radio

Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 787422) Radio

Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 787438) Radio
Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 836190) Radio Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 836192) Radio

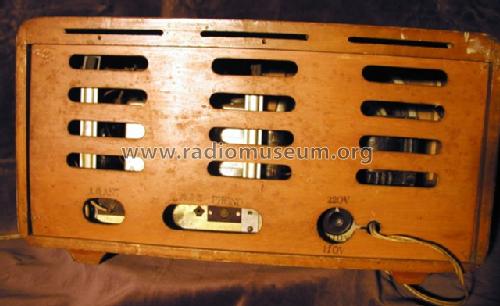

Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 836191) Radio Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 787383) Radio
Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 836193) Radio Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 952139) Radio
Use red slider bar for more.
Hongxing 红星 Red Star 504-5; Nanjing 南京无线电厂 (ID = 836190) Radio
Nanjing 南京无线电厂: Hongxing 红星 Red Star 504-5 [Radio] ID = 836190 640x388
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hongxing 红星 Red Star 504-5, Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing

Country:  People's Republic of China
Manufacturer / Brand:  Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6А2П 6К4П 6Х2П 6Н1П 6Ц4П
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Hongxing 红星 Red Star 504-5 - Nanjing 南京无线电厂 Nanjing Radio
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes The Hongxing 红星 Red Star modela 504-4, 504-5 and 504-6 share the same documentation on page 188ff, same schematic but different cabinets. Schematic is very similar to the ones with US tubes, also with a full mains transformer. Russian tube types in allglass technique, klick the tubes and you have the US or Europe equivalent. The wave bands are broadcast 520 - 1600 kHz, SW 3.9 - 8 and 9 - 16 MHz.
Price in first year of sale 148.00 CNY
Literature/Schematics (1) 10-Broadcast Radio Manual, July 1959 (1958/59) (188 ff.)

Model page created by Ernst Erb. See "Data change" for further contributors.
