Xiongmao 熊猫 Panda 509-1A

Xiongmao 熊猫 Panda 509-1A; Nanjing 南京无线电厂 (ID = 788134) Radio

Xiongmao 熊猫 Panda 509-1A; Nanjing 南京无线电厂 (ID = 788135) Radio

Xiongmao 熊猫 Panda 509-1A; Nanjing 南京无线电厂 (ID = 788136) Radio
Use red slider bar for more.
Xiongmao 熊猫 Panda 509-1A; Nanjing 南京无线电厂 (ID = 788134) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  People's Republic of China
Manufacturer / Brand:  Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1А2П 1К2П 1К2П 1Б2П 2П2П
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 1.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Xiongmao 熊猫 Panda 509-1A - Nanjing 南京无线电厂 Nanjing Radio
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 275 x 190 mm / 16.9 x 10.8 x 7.5 inch
Notes The Xiongmao 熊猫 Panda battery models 509, 509-1A (in the index it is only 509-1) and 509-A share the same schematics - with 3 IF filters. The 509 has a different cabinet (measurement). No pictures given for 509-1A and 509-A yet. They receive broadcast 520 - 1600 kHz and SW 3.8 - 8 MHz and 8 - 16 MHz. Russian tube types in allglass technique, klick the tubes and you have the US or Europe equivalent.

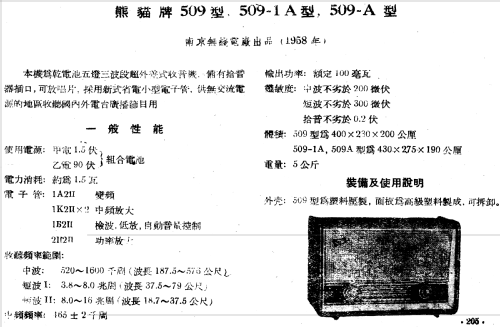

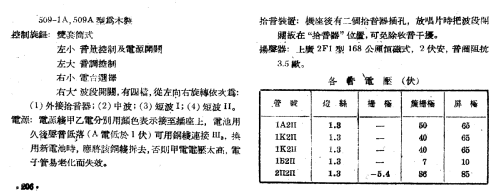

Literature/Schematics (1) 10-Broadcast Radio Manual, July 1959 (1958/59) (page 205 ff.)

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Nanjing 南京无线电厂 Nanjing Radio Factory, Nanjing
Here you find 56 models, 45 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
