Xiongmao 熊猫 Panda 507
Use red slider bar for more.
Nanjing 南京无线电厂: Xiongmao 熊猫 Panda 507 [Radio] ID = 788105 933x588
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1958/1959 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6И1П 6И1П 6Н2П 6П1П 6Ц4П |
|---|
| Main principle | Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast plus 2 Short Wave bands. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 220; 250 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Xiongmao 熊猫 Panda 507 - Nanjing 南京无线电厂 Nanjing Radio |
| Material | Bakelite case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 430 x 282 x 202 mm / 16.9 x 11.1 x 8 inch |
| Notes | The Xiongmao 熊猫 Panda models 507, 605 and 607 - with slightly different cabinet - have a full transformer and a magic eye as tuning indicator. We believe they have a bakelite cabinet and that model 507 is missing the magic eye. They receive broadcast 520 - 1600 kHz and SW 3.8 - 9 plus 9 - 18 MHz. Russian tube types in allglass technique, klick the tubes and you have the US or Europe equivalent. Probably only one of the three Panda or Xiongmao have this cabinet, but we don't know yet which one. |

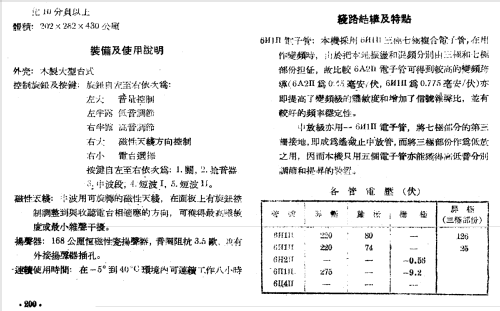

| Literature/Schematics (1) | 10-Broadcast Radio Manual, July 1959 (1958/59) (page 199 ff.) |
