- Country
- Australia
- Manufacturer / Brand
- Air Chief, (brand of NASCO), National Automotive Service Company (General Motors-Holden); Melbourne.
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 280451

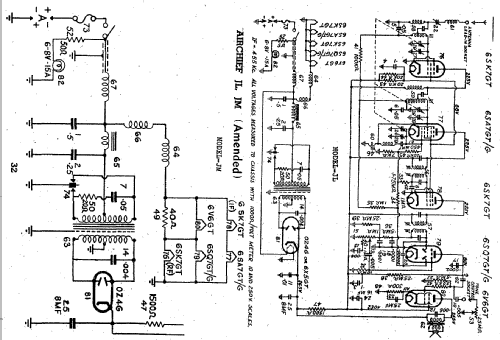

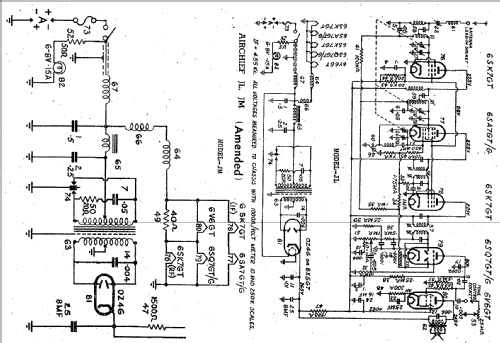

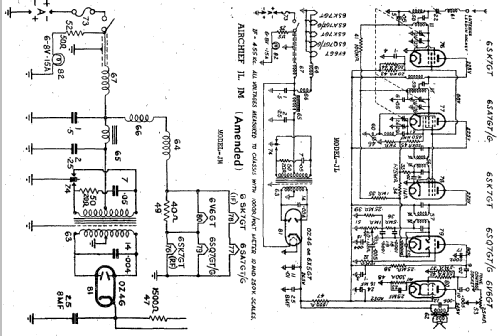

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Air Chief JL [Amended] - Air Chief, brand of NASCO,
- Shape
- Chassis only or for «building in»
- Literature/Schematics (1)
- Australian Official Radio Service Manual Vol.XII, page 29
- Author
- Model page created by Gary Cowans. See "Data change" for further contributors.
- Other Models
-
Here you find 40 models, 10 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Air Chief, (brand of NASCO), National Automotive Service Company (General Motors-Holden); Melbourne.
