Knock-Down 3-tube

Knock-Down 3-tube ; Nash-Odell Company, (ID = 1696981) Kit
Use red slider bar for more.
Knock-Down 3-tube ; Nash-Odell Company, (ID = 1696981) Kit
Nash-Odell Company,: Knock-Down 3-tube [Kit] ID = 1696981 933x504
Select picture or schematic to display from thumbnails on the right and click for download.
For model Knock-Down 3-tube, Nash-Odell Company, The; Chicago, IL:

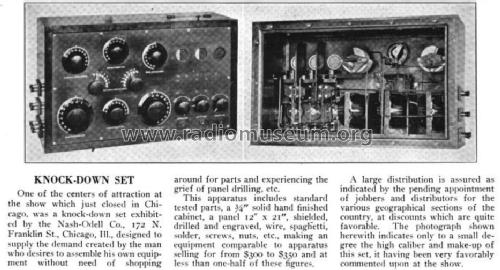

August 1922, The Radio Dealer magazine on page 56

Country:  United States of America (USA)
Manufacturer / Brand:  Nash-Odell Company, The; Chicago, IL
Year: 1922 Category: Kit (Parts plus instruction) or building instructions only
Valves / Tubes 3: UV200 UV201 UV201
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Knock-Down 3-tube - Nash-Odell Company, The;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 21 x 12 x 0 inch / 533 x 305 x 0 mm
Literature/Schematics (2) August 1922, The Radio Dealer magazine on page 56

Model page created by Alan Larsen. See "Data change" for further contributors.
