For model CN112, National Electric Signaling Co. (NESCO) or Supply; Washington, D.C.:

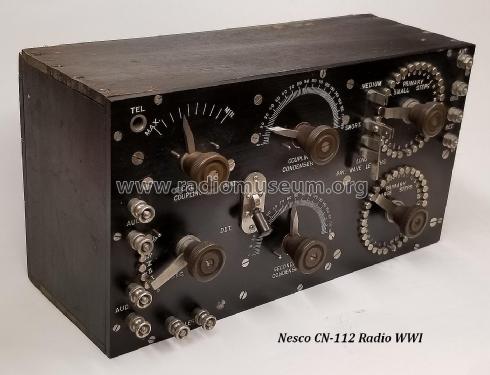

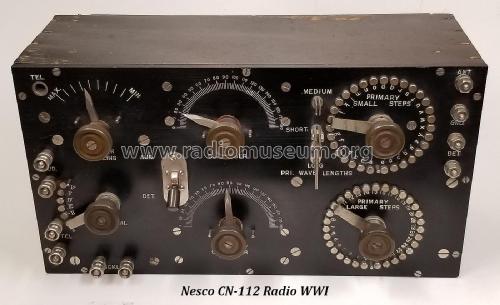

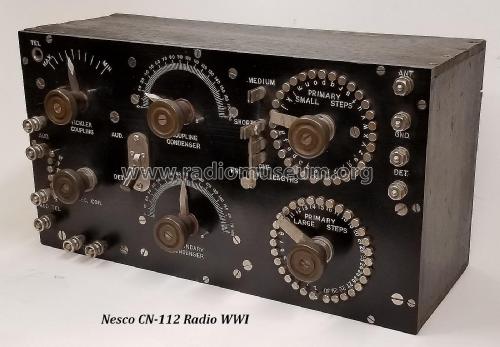

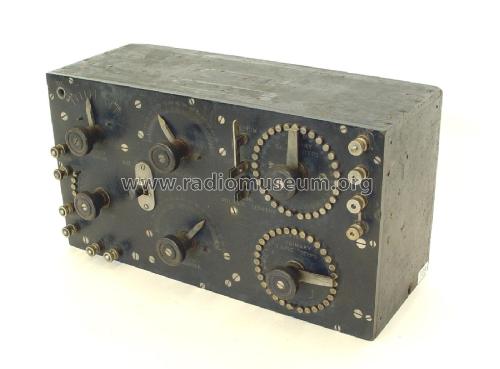

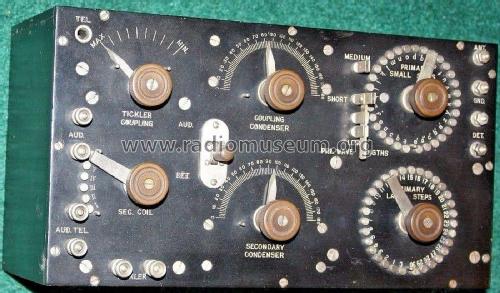

NESCO CN-112 WWI Submarine Wireless Radio Receiver

Country:  United States of America (USA)
Manufacturer / Brand:  National Electric Signaling Co. (NESCO) or Supply; Washington, D.C.
alternative name

National Electric Signaling Co. || National Electrical Supply Co.
Year: 1917 Category: Radio module pre 1926 (not a part, not a key)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: CN112 - National Electric Signaling Co

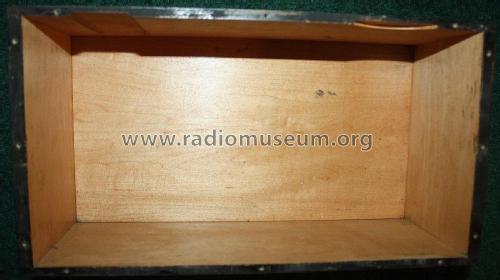

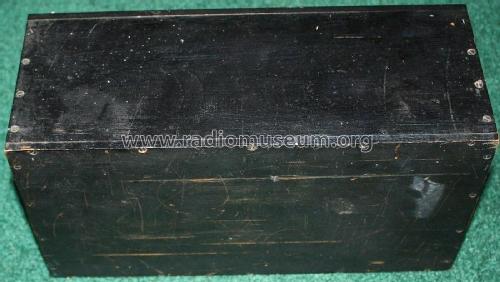

Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 330 x 180 x 150 mm / 13 x 7.1 x 5.9 inch

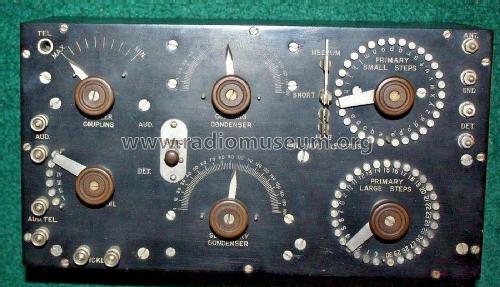

Notes No built in detector. Terminals for both external audion and detector, selectable by switch. Long and medium waves in three ranges. It is a submarine receiver.
Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Source of data -- Collector info (Sammler)

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from National Electric Signaling Co. (NESCO) or Supply; Washington, D.C.
Here you find 30 models, 28 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
