R-1077; Panasonic, (ID = 484948) Radio

R-1077; Panasonic, (ID = 484949) Radio

R-1077; Panasonic, (ID = 484947) Radio
R-1077; Panasonic, (ID = 1467139) Radio R-1077; Panasonic, (ID = 137169) Radio
R-1077; Panasonic, (ID = 137337) Radio R-1077; Panasonic, (ID = 137338) Radio
R-1077; Panasonic, (ID = 262577) Radio R-1077; Panasonic, (ID = 1165510) Radio
R-1077; Panasonic, (ID = 1221562) Radio R-1077; Panasonic, (ID = 1221563) Radio
R-1077; Panasonic, (ID = 1221564) Radio R-1077; Panasonic, (ID = 1382677) Radio
Use red slider bar for more.
R-1077; Panasonic, (ID = 1467139) Radio
Panasonic,: R-1077 [Radio] ID = 1467139 933x968
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-1077, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1970 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SA102 2SA101 2SA101 2SB171 2SB175 2SB176 2SB176
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: R-1077 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 110 x 35 mm / 2.8 x 4.3 x 1.4 inch
Notes

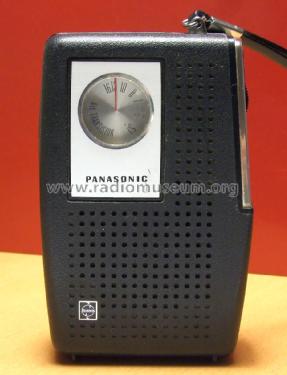

Panasonic 1-Band 7-Transistor AM Portable Radio Model R-1077.
Tuning Range AM 525 - 1605 kHz.
Made in Japan.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Source of data -- Original-techn. papers.

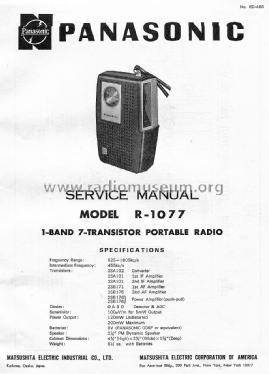

Mentioned in Panasonic Service Manual No. RD-466

Model page created by Ervé Leclercq. See "Data change" for further contributors.
