571B ; National Union Radio (ID = 843114) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  National Union Radio Corp.; Orange (NJ)
Year: 1946 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 571B - National Union Radio Corp.;
Material Wooden case
Shape Tablemodel, with any shape - general.

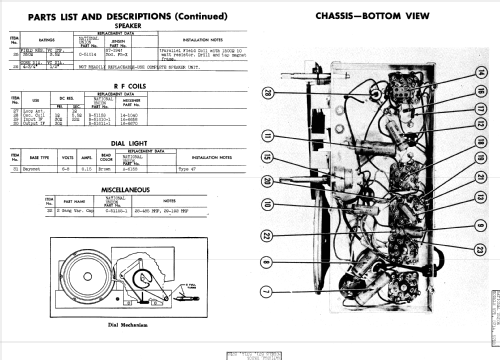

Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 17, Date 4/47, Folder 477-22)

Model page created by Ernst Erb. See "Data change" for further contributors.
