Amplifier De Luxe W-15-A

Amplifier De Luxe W-15-A; National Union Radio (ID = 1520181) Ampl/Mixer Amplifier De Luxe W-15-A; National Union Radio (ID = 1520183) Ampl/Mixer
Amplifier De Luxe W-15-A; National Union Radio (ID = 1520185) Ampl/Mixer Amplifier De Luxe W-15-A; National Union Radio (ID = 1520186) Ampl/Mixer

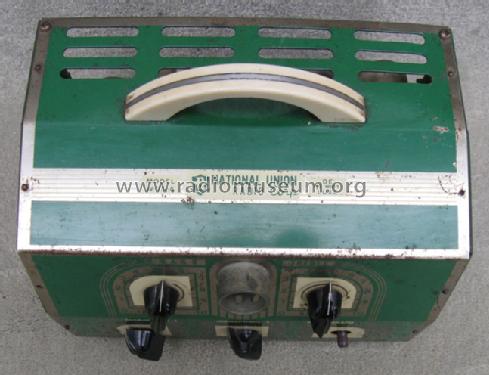

Amplifier De Luxe W-15-A; National Union Radio (ID = 1520188) Ampl/Mixer Amplifier De Luxe W-15-A; National Union Radio (ID = 1520189) Ampl/Mixer
Use red slider bar for more.
Amplifier De Luxe W-15-A; National Union Radio (ID = 1520181) Ampl/Mixer
National Union Radio: Amplifier De Luxe W-15-A [Ampl/Mixer] ID = 1520181 568x448
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier De Luxe W-15-A, National Union Radio Corp.; Orange (NJ):
aus ebay, #261279298406, Verkäufer buyingstuffidontneed2

Country:  United States of America (USA)
Manufacturer / Brand:  National Union Radio Corp.; Orange (NJ)
Year: 1945 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 5: 7N7 7N7 7C5 7C5 7Z4
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 15 W (25 W max.)
from Radiomuseum.org Model: Amplifier De Luxe W-15-A - National Union Radio Corp.;
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 9 x 8 x 6 inch / 229 x 203 x 152 mm
Notes

PA amplifier with 3 inputs: 2x Microphone + Phonograph.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
