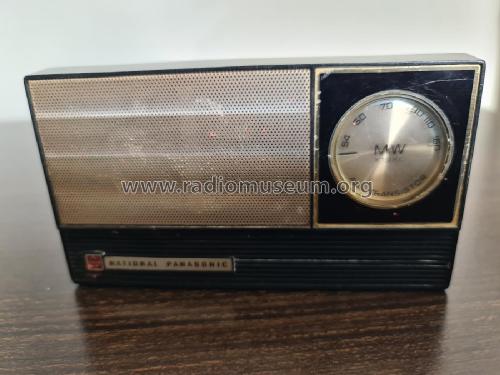

National Panasonic All Transistor R-121
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1962 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 109188
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: National Panasonic All Transistor R-121 - Panasonic, Matsushita,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 5.75 x 3.25 x 1.5 inch / 146 x 83 x 38 mm
- Notes
- Frequency Range: 535-1605 kHz. Leather carry case with pouch for earphone on the strap. Socket for earphone.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
