For model National 'Panasonic 8' R-807 J, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA70 2SA101 2SA101 2SB171 2SB171 2SB172 2SB172 2SB173
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 5 AM circuit(s)

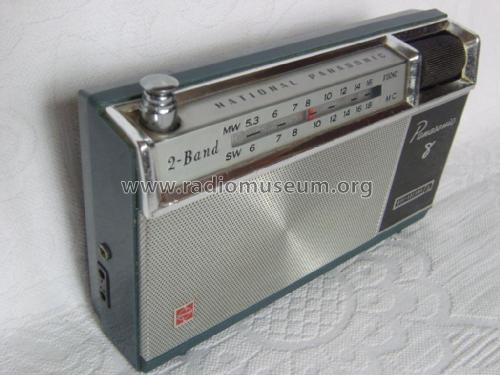

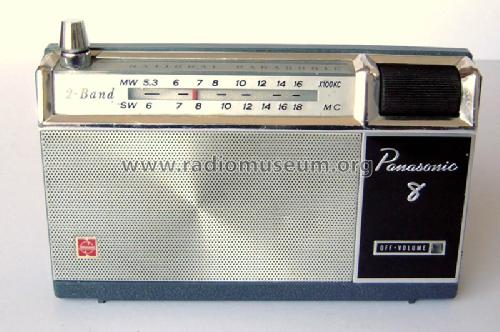

Wave bands Broadcast and Short Wave (SW).
Details

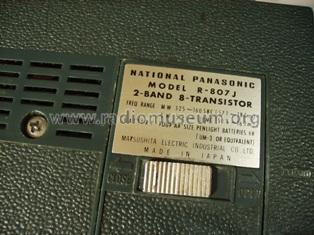

Power type and voltage Dry Batteries / 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out
from Radiomuseum.org Model: National "Panasonic 8" R-807 J - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 155 x 92 x 40 mm / 6.1 x 3.6 x 1.6 inch
Notes SW: 6 - 18 MHz.

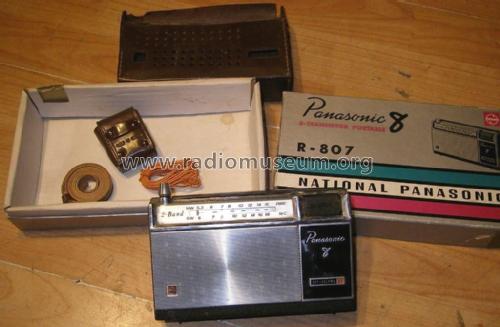

Similar to eight transistor version R-807 with broadcast and short wave bands.
Literature/Schematics (1) -- Schematic

Model page created by William J Blanchflower. See "Data change" for further contributors.



All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Here you find 2581 models, 2332 with images and 503 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Panasonic,: National "Panasonic 8" R-807 J
Threads: 1 | Posts: 1
Hits: 2360     Replies: 0
national: R-807J (R 807 J);
Thomas Bavis
21.Jun.06
  1 Service info: Sams TSM-61
