National RQ-105S

National RQ-105S; Panasonic, (ID = 377520) R-Player

National RQ-105S; Panasonic, (ID = 377521) R-Player

National RQ-105S; Panasonic, (ID = 809439) R-Player
National RQ-105S; Panasonic, (ID = 758899) R-Player National RQ-105S; Panasonic, (ID = 758900) R-Player
National RQ-105S; Panasonic, (ID = 758905) R-Player National RQ-105S; Panasonic, (ID = 758901) R-Player
National RQ-105S; Panasonic, (ID = 296685) R-Player National RQ-105S; Panasonic, (ID = 758902) R-Player
National RQ-105S; Panasonic, (ID = 758903) R-Player National RQ-105S; Panasonic, (ID = 758904) R-Player
National RQ-105S; Panasonic, (ID = 2563713) R-Player
Use red slider bar for more.
National RQ-105S; Panasonic, (ID = 758899) R-Player
Panasonic,: National RQ-105S [R-Player] ID = 758899 933x744
Select picture or schematic to display from thumbnails on the right and click for download.
For model National RQ-105S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1966–1969 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 6: 2SB173 2SB175 2SB175 2SB178 2SB178 2SB172
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Dry Batteries / C: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 1 W (max.)
from Radiomuseum.org Model: National RQ-105S - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.25 x 2.625 x 7.75 inch / 260 x 67 x 197 mm
Notes

National RQ105S Tape Recorder

  Fully transistorised 2-speed, capstan drive tape recorder, housed in lightweight case with carrying handle.
  Features: two speeds - 1⅞ and 3¾ ips. Frequency response, 100-7000 c/s (Hz) at 3¾ ips; 100-400 c/s (Hz) at 1⅞ ips.
  Playing time, 30 mins at 1⅞ ips using standard 300 ft tape. Operates from four National Type UM2 cells.

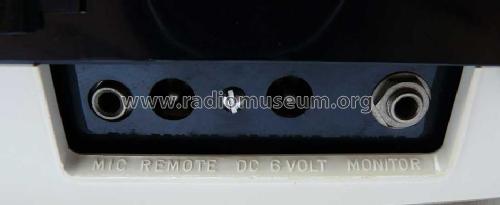

  Remote control switch on microphone permits stop-start operation; sound monitor system permits listening to recording as it is being made. level meter indicates recording level and battery consumption. Jacks for earphone, extension speaker.

This model sold in Australia between 1966 & 1969 for $69.95. Price includes batteries.

Net weight (2.2 lb = 1 kg) 4 lb 0 oz (4 lb) / 1.816 kg
Mentioned in Funkschau (1966 Heft 11 Seite 860)
Literature/Schematics (1) JR Tape Recorder Handbook, Page N3. (Also at KevinChant com)
Literature/Schematics (2) Mingay's Price Service (Aug 1966 to Feb 1969.)
