RQ-226 SE

RQ-226 SE; Panasonic, (ID = 797552) R-Player
RQ-226 SE; Panasonic, (ID = 2364148) R-Player RQ-226 SE; Panasonic, (ID = 2364147) R-Player
RQ-226 SE; Panasonic, (ID = 2364149) R-Player RQ-226 SE; Panasonic, (ID = 2364146) R-Player
RQ-226 SE; Panasonic, (ID = 112394) R-Player
Use red slider bar for more.

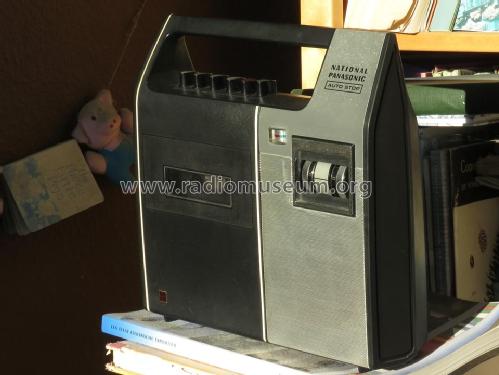

RQ-226 SE; Panasonic, (ID = 2364148) R-Player

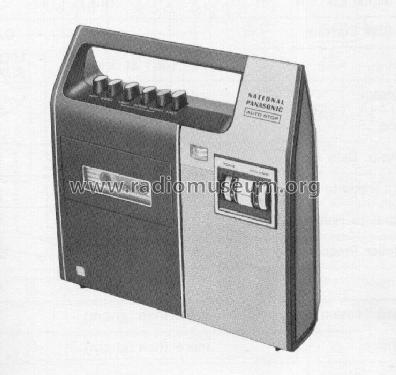

Panasonic,: RQ-226 SE [R-Player] ID = 2364148 961x721
Select picture or schematic to display from thumbnails on the right and click for download.
For model RQ-226 SE, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1972 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 7: 2SB173 2SB175 2SB175 2SB175 2SB324 2SB324 2SB172
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110-250 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: RQ-226 SE - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Notes

Cassette tape recorder

Unter der Rückklappe befinden sich: Batteriefach, Fach zum Versorgen des Netzkabels, Fach für das mitgelieferte Mikrofon und den mitgelieferten Ohrhörer

Source of data -- Original-techn. papers.
Literature/Schematics (1) -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 6° Antonelliana)

Model page created by Hugo Sneyers. See "Data change" for further contributors.
