RQ-435SE

RQ-435SE; Panasonic, (ID = 112404) Radio RQ-435SE; Panasonic, (ID = 766328) Radio
RQ-435SE; Panasonic, (ID = 991192) Radio
Use red slider bar for more.
RQ-435SE; Panasonic, (ID = 112404) Radio
Panasonic,: RQ-435SE [Radio] ID = 112404 781x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model RQ-435SE, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
service manual

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 90-250 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: RQ-435SE - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)

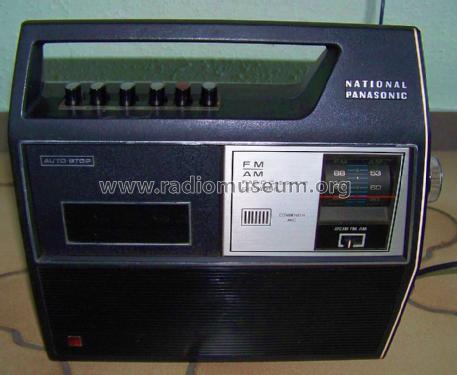

Notes Cassette tape recorder with 2-band FM/AM radio
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
