National UB-140

National UB-140; Panasonic, (ID = 2388505) Radio National UB-140; Panasonic, (ID = 2388506) Radio
National UB-140; Panasonic, (ID = 2388508) Radio National UB-140; Panasonic, (ID = 2388510) Radio
Use red slider bar for more.

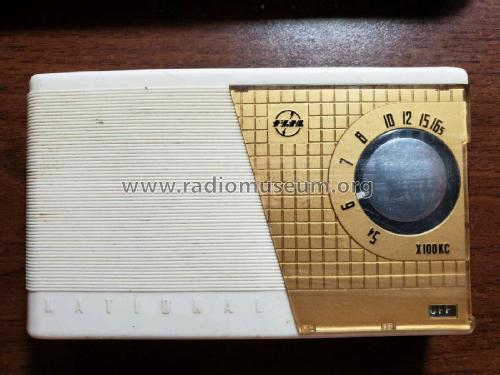

National UB-140; Panasonic, (ID = 2388505) Radio
Panasonic,: National UB-140 [Radio] ID = 2388505 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model National UB-140, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
ebay.com 163685894584 seller seekanbuy

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1954 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: DK96 DF96 DAF96
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / C: 1 x 1.5 + 1 x 45 Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: National UB-140 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 5.5 x 3.25 x 1.25 inch / 140 x 83 x 32 mm
Notes

Different tube sets known, for use with a crystal earphone only.

Source of data -- Schematic

Model page created by a member from A. See "Data change" for further contributors.
