10 Transistor NTF-1001

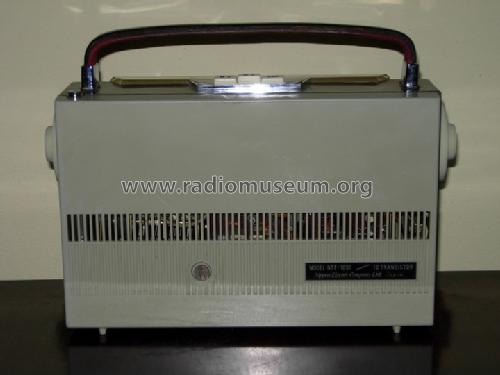

10 Transistor NTF-1001; NEC Corporation, (ID = 1431492) Radio 10 Transistor NTF-1001; NEC Corporation, (ID = 1431493) Radio
10 Transistor NTF-1001; NEC Corporation, (ID = 1431496) Radio
Use red slider bar for more.
10 Transistor NTF-1001; NEC Corporation, (ID = 1431492) Radio
NEC Corporation,: 10 Transistor NTF-1001 [Radio] ID = 1431492 720x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10 Transistor NTF-1001, NEC Corporation, Nippon Electric Co. Ltd. (Nippon Denki); Tokyo

Country:  Japan
Manufacturer / Brand:  NEC Corporation, Nippon Electric Co. Ltd. (Nippon Denki); Tokyo
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: 10 Transistor NTF-1001 - NEC Corporation, Nippon
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 150 x 70 mm / 9.4 x 5.9 x 2.8 inch
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)

Model page created by Pedro González Hernando. See "Data change" for further contributors.



All listed radios etc. from NEC Corporation, Nippon Electric Co. Ltd. (Nippon Denki); Tokyo
Here you find 169 models, 129 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
