• Country
• Japan

• Manufacturer / Brand
• NEC Corporation, Nippon Electric Co. Ltd. (Nippon Denki); Tokyo

• Year
• 1993

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 157752

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

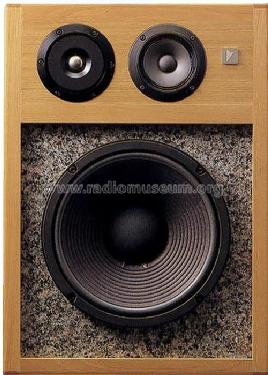

• Model: Authentic 3001 - NEC Corporation, Nippon

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 440 x 620 x 370 mm / 17.3 x 24.4 x 14.6 inch

• Notes
• 3-Weg-Standbox mit 120 Watt Sinus an 8 Ohm. 50 - 20.000 Hz, 90 dB/W/m.
  300mm TT, 100mm MT, 30mm HT-Kalotte.
  Frequenzweiche 12dB/Oct, Übergänge bei 800 und 5.500Hz.
  Gehäuseausführung: Japanische Eiche oder Walnut.
  Optional: 3-beiniger Standfuss. Masse mit Standfuss: 510x900x450mm.

• Net weight (2.2 lb = 1 kg)
• 51 kg / 112 lb 5.4 oz (112.335 lb)
