NT-61

NT-61; NEC Corporation, (ID = 584981) Radio

NT-61; NEC Corporation, (ID = 584984) Radio

NT-61; NEC Corporation, (ID = 584986) Radio

NT-61; NEC Corporation, (ID = 584987) Radio
NT-61; NEC Corporation, (ID = 2377459) Radio NT-61; NEC Corporation, (ID = 2377471) Radio
NT-61; NEC Corporation, (ID = 2377480) Radio NT-61; NEC Corporation, (ID = 2377473) Radio
NT-61; NEC Corporation, (ID = 2377461) Radio NT-61; NEC Corporation, (ID = 2377460) Radio
NT-61; NEC Corporation, (ID = 515825) Radio NT-61; NEC Corporation, (ID = 515826) Radio

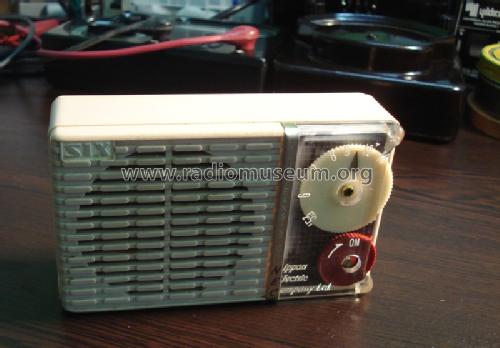

NT-61; NEC Corporation, (ID = 515828) Radio NT-61; NEC Corporation, (ID = 1077035) Radio
Use red slider bar for more.
NT-61; NEC Corporation, (ID = 2377459) Radio
NEC Corporation,: NT-61 [Radio] ID = 2377459 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model NT-61, NEC Corporation, Nippon Electric Co. Ltd. (Nippon Denki); Tokyo

Country:  Japan
Manufacturer / Brand:  NEC Corporation, Nippon Electric Co. Ltd. (Nippon Denki); Tokyo
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: ST-172 ST-162 ST-162 ST-302 ST-302 ST-302
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out 0.07 W (unknown quality)
from Radiomuseum.org Model: NT-61 - NEC Corporation, Nippon
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 106 x 63 x 34 mm / 4.2 x 2.5 x 1.3 inch
Notes Battery operated transistorized portable AM receiver.
Net weight (2.2 lb = 1 kg) 0.260 kg / 0 lb 9.2 oz (0.573 lb)
Source of data -- Collector info (Sammler)

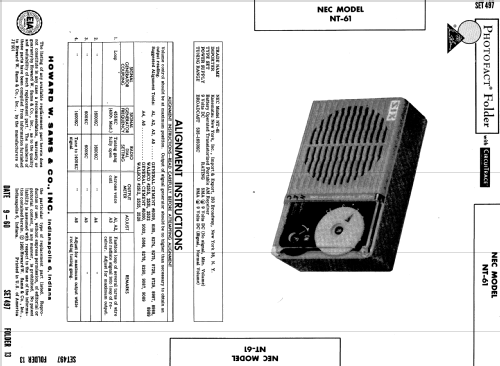

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 497 folder 13 date 9-60)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from NEC Corporation, Nippon Electric Co. Ltd. (Nippon Denki); Tokyo
Here you find 171 models, 137 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
