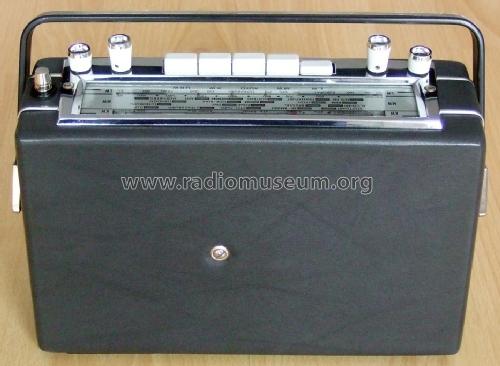

959517; Neckermann-Versand (ID = 1412197) Radio 959517; Neckermann-Versand (ID = 1389491) Radio
959517; Neckermann-Versand (ID = 1389498) Radio 959517; Neckermann-Versand (ID = 1389511) Radio
959517; Neckermann-Versand (ID = 1389513) Radio 959517; Neckermann-Versand (ID = 1389515) Radio
959517; Neckermann-Versand (ID = 1389516) Radio 959517; Neckermann-Versand (ID = 1389517) Radio
Use red slider bar for more.
959517; Neckermann-Versand (ID = 1389496) Radio
Neckermann-Versand: 959517 [Radio] ID = 1389496 933x766
Select picture or schematic to display from thumbnails on the right and click for download.
For model 959517, Neckermann-Versand KG; Frankfurt a.M.:
eigenes Foto, aufgenommen am 21.01.2013

Country:  Germany
Manufacturer / Brand:  Neckermann-Versand KG; Frankfurt a.M.
Brand

Twen Tone
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF106 AF135 AF136 AF138 AF137 2SB54 2SB54 AC117 AC117
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 2 x 4,5/ ? Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: 959517 - Neckermann-Versand KG;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 205 x 90 mm / 11 x 8.1 x 3.5 inch
Notes

Hersteller ist Südfunk-Apparatebau, Dr.Ing. Robert Ott, Stuttgart,

Netzbetrieb mit zusätzlichem Netzteil möglich,

Anschuß für KFZ-Betrieb,

getrennte Höhen- und Tiefenregler,

Tonbandanschluß 5 pol. DIN-Buchse,

weiße Tasten.

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)

Model page created by Joachim Benneke. See "Data change" for further contributors.
