• Country
• Germany

• Manufacturer / Brand
• Neckermann-Versand KG; Frankfurt a.M.

• Year
• 1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85795

• • Brand: Twen Tone

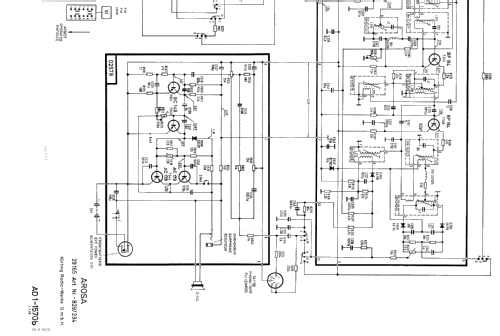

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF195 BF194 BF194 BF194 BF194 BF194 BC148 BC148 AC178 AC179 1S49 AA116 AA116 AA116 BZ102 BZY87

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / C: 5 x 1,5 / 7,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

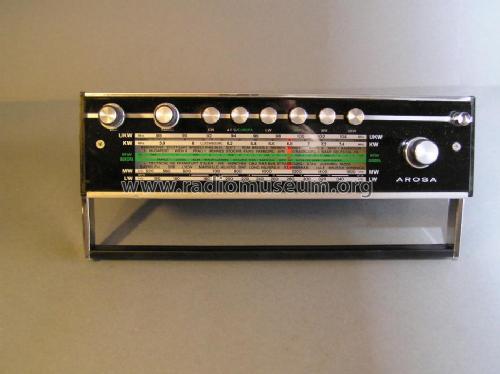

• Model: Körting Arosa Transistorkoffer 29165 Art. Nr. 829/234 - Neckermann-Versand KG;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 170 x 70 mm / 11 x 6.7 x 2.8 inch

• Notes

• 5 Wellen (UKW; MW; KW; LW; Europawelle); AFC;
  Externe Stromversorgung mit zusätzlichem Netzteil Art.Nr. 813/745 möglich.

  Hersteller: Körting, für Neckermann-Versand KG; Frankfurt a.M.

• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Price in first year of sale
• 199.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
