Bremen 25150 Art.Nr. 821/05

Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 56748) Radio

Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 56750) Radio

Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 628968) Radio

Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 628970) Radio

Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 628972) Radio

Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 628973) Radio

Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 628974) Radio

Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 629433) Radio
Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 52610) Radio Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 52611) Radio
Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 1424756) Radio Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 1789125) Radio
Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 1789128) Radio
Use red slider bar for more.
Bremen 25150 Art.Nr. 821/05; Neckermann-Versand (ID = 52610) Radio

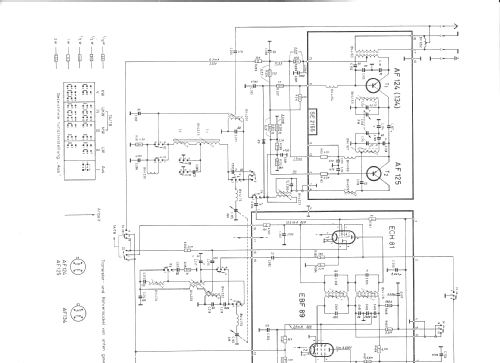

Neckermann-Versand: Bremen 25150 Art.Nr. 821/05 [Radio] ID = 52610 662x338
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bremen 25150 Art.Nr. 821/05, Neckermann-Versand KG; Frankfurt a.M.

Country:  Germany
Manufacturer / Brand:  Neckermann-Versand KG; Frankfurt a.M.
Brand

Twen Tone
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECH81 EBF89 ECL86
Semiconductors (the count is only for transistors) 2: AF124 AF125 AA113 AA113 AA116
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Bremen 25150 Art.Nr. 821/05 - Neckermann-Versand KG;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 220 x 170 mm / 17.3 x 8.7 x 6.7 inch
Notes

Hersteller:
Körting Radiowerke, Grassau/Chiemgau für Neckermann Versand KG, Frankfurt a.M.

Siehe z.B. Neckermann Oslo 821/18 mit identischem Chassis, jedoch zusätzlicher EM84.

Net weight (2.2 lb = 1 kg) 4.8 kg / 10 lb 9.2 oz (10.573 lb)
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Alexander Schmitz. See "Data change" for further contributors.



All listed radios etc. from Neckermann-Versand KG; Frankfurt a.M.
Here you find 510 models, 452 with images and 151 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
