K766
Use red slider bar for more.

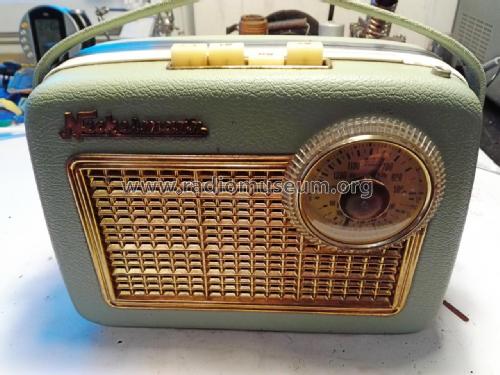

Neckermann-Versand: K766 [Radio] ID = 1308449 933x686
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Twen Tone | ||||
|---|---|---|---|---|---|
| Year: 1960–1965 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 7: OC615 AF101 AF101 OC604 OC604 OC74 OC74 |
| Main principle | Superheterodyne (common); ZF/IF 470 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 4 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: K766 - Neckermann-Versand KG; |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 230 x 175 x 80 mm / 9.1 x 6.9 x 3.1 inch |
| Notes |
Neckermann Portable K766, Art.Nr. derzeit nicht bekannt. |
Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
All listed radios etc. from Neckermann-Versand KG; Frankfurt a.M.
