Oslo 27155 Art. Nr. 821/17

Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 205710) Radio

Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 205711) Radio

Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 205714) Radio

Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 205715) Radio

Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 206100) Radio
Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 181896) Radio Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 181898) Radio
Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 181899) Radio Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 181901) Radio
Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 181902) Radio Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 181903) Radio
Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 183044) Radio Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 183045) Radio
Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 183046) Radio Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 207687) Radio
Use red slider bar for more.
Oslo 27155 Art. Nr. 821/17; Neckermann-Versand (ID = 181896) Radio

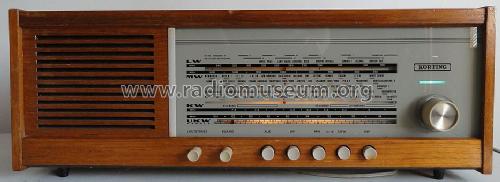

Neckermann-Versand: Oslo 27155 Art. Nr. 821/17 [Radio] ID = 181896 900x418
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oslo 27155 Art. Nr. 821/17, Neckermann-Versand KG; Frankfurt a.M.

Country:  Germany
Manufacturer / Brand:  Neckermann-Versand KG; Frankfurt a.M.
Brand

Twen Tone
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 EM84
Main principle Superheterodyne (common); 2 AF stage(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Oslo 27155 Art. Nr. 821/17 - Neckermann-Versand KG;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 575 x 200 x 170 mm / 22.6 x 7.9 x 6.7 inch
Notes Hersteller Körting. Schriftzug "Neckermann" auf dem Holzgehäuse und "Körting" auf dem Skalenglas.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Ekkehard Pfau. See "Data change" for further contributors.



All listed radios etc. from Neckermann-Versand KG; Frankfurt a.M.
Here you find 531 models, 475 with images and 159 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
