Palladium Art. 949/396
Neckermann-Versand KG; Frankfurt a.M.
- Country
- Germany
- Manufacturer / Brand
- Neckermann-Versand KG; Frankfurt a.M.
- Year
- 1978 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 308207
-
- Brand: Twen Tone
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / UM1: 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Palladium Art. 949/396 - Neckermann-Versand KG;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 295 x 155 x 75 mm / 11.6 x 6.1 x 3 inch
- Notes
-

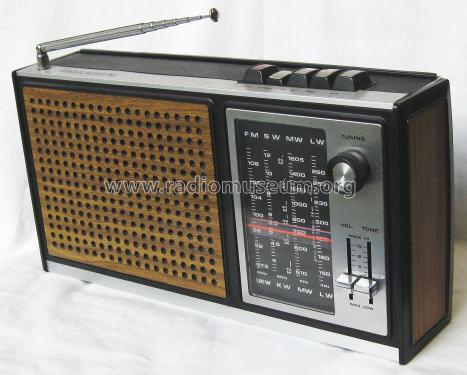

AM/FM-Kofferempfänger mit 52 cm langer dreh- und schwenkbarer Teleskopantenne, Tastatur und schwenkbarem Metalltragegriff oben. Abstimmung, Lautstärke- und Tonschieberegler vorn. 3,5 mm Kopfhöreranschluss und Netzstecker hinten.
Empfangsbereiche:
UKW: 87,5 - 108 MHz,
KW: 3,8 - 12 MHz,
MW: 510 - 1605 kHz,
LW: 145 - 285 kHz.Made in Hong Kong
- Net weight (2.2 lb = 1 kg)
- 1.320 kg / 2 lb 14.5 oz (2.907 lb)
- Author
- Model page created by Holger Struthoff. See "Data change" for further contributors.
