Transistorkoffer 822F12 1048317; Neckermann-Versand (ID = 1096546) Radio

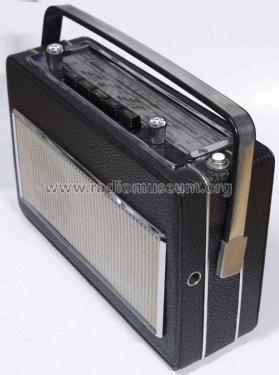

Neckermann-Versand: Transistorkoffer 822F12 1048317 [Radio] ID = 1096546 933x619
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistorkoffer 822F12 1048317, Neckermann-Versand KG; Frankfurt a.M.

Country:  Germany
Manufacturer / Brand:  Neckermann-Versand KG; Frankfurt a.M.
Brand

Twen Tone
Year: 1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF135 AF138 unknown_tr 2SB54 2SB54 2SB202 2SB202
schematic requested
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Transistorkoffer 822F12 1048317 - Neckermann-Versand KG;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 200 x 85 mm / 11 x 7.9 x 3.3 inch
Notes

Quarzgesteuerte Radio Luxemburg-Fixtaste (KW-6090 kHz).
Anschlüsse: TA/TB, Außenantenne, Buchse für ext. Netzteil.
2-stufige Klangeinstellung am Lautstärkeregler.
Das Modell ist nicht für den Betrieb im Auto vorgesehen.

Hersteller Südfunk Dr. Ott Stuttgart

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 235.00 DM
Source of data - - Data from my own collection
Mentioned in Neckermann Katalog 1965/66

Model page created by Klaus-Hartwig Müller. See "Data change" for further contributors.
