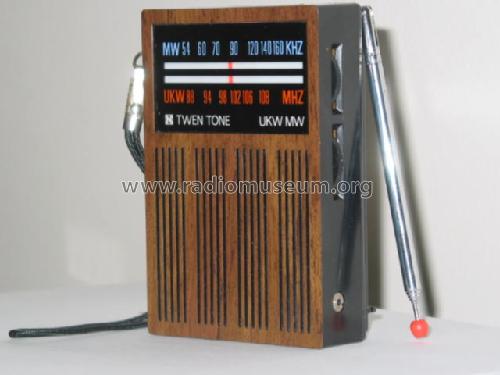

Twen Tone Art. Nr. 822/310 FR NR01 Front geschlitzt

Neckermann-Versand KG; Frankfurt a.M.

  • Year
  • 1973 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 96447
    • Brand: Twen Tone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Twen Tone Art. Nr. 822/310 FR NR01 [Front geschlitzt] - Neckermann-Versand KG;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 80 x 120 x 40 mm / 3.1 x 4.7 x 1.6 inch
  • Notes
  • 6-gliedrige seitlich ausklappbare Teleskopantenne, Ohrhöreranschluss.

    Siehe auch Neckermann Twen Tone 822/310 mit gelochter Front.

  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Price in first year of sale
  • 35.00 DM
  • Author
  • Model page created by Wolfgang Winkler. See "Data change" for further contributors.
