Long Wave Receiver Type SE 1899
Use red slider bar for more.

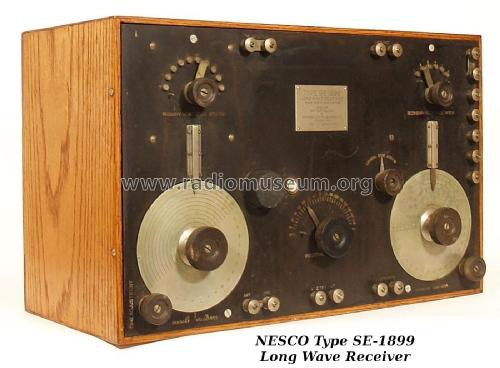

National Electric: Long Wave Receiver Type SE 1899 [mod-pre26] ID = 2139935 1400x1040
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
National Electric Signaling Co. || National Electrical Supply Co. | ||||
|---|---|---|---|---|---|
| Year: 1923 | Category: Radio module pre 1926 (not a part, not a key) |
| Main principle | Tuner pre 1926 (not a wave trap) |
|---|---|
| Wave bands | Long Wave and/or Very Low Frequency (VLF). |
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Long Wave Receiver Type SE 1899 - National Electric Signaling Co |
| Material | Wooden case |
| Shape | Tablemodel, Box - most often with Lid (NOT slant panel). |
| Dimensions (WHD) | 580 x 370 x 300 mm / 22.8 x 14.6 x 11.8 inch |
| Notes | The National Electrical Supply Co. Long Wave Receiver Type S.E. 1899 produced in 1923 for the Bureau of Steam Engineering of the US Navy. This receiver covers the 1000 to 25,000 meters wavelength range/ |
| Net weight (2.2 lb = 1 kg) | 21 kg / 46 lb 4.1 oz (46.256 lb) |
Model page created by Alan Larsen. See "Data change" for further contributors.
