Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514

Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514; National Electric (ID = 2253223) Military Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514; National Electric (ID = 2253221) Military
Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514; National Electric (ID = 2253222) Military Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514; National Electric (ID = 2253224) Military
Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514; National Electric (ID = 2253227) Military Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514; National Electric (ID = 2253228) Military
Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514; National Electric (ID = 2263467) Military Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514; National Electric (ID = 2263468) Military
Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514; National Electric (ID = 2263469) Military
Use red slider bar for more.
Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514; National Electric (ID = 2253223) Military
National Electric: Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514 [Military] ID = 2253223 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514, National Electric Signaling Co. (NESCO) or Supply; Washington, D.C.:
US_NESCO_SE 2514_vue côté gauche_coll. privée (réf: 1983, 1984).

Country:  United States of America (USA)
Manufacturer / Brand:  National Electric Signaling Co. (NESCO) or Supply; Washington, D.C.
alternative name

National Electric Signaling Co. || National Electrical Supply Co.
Year: 1926 ? Category: Military Equipment (not Re, Tr or RXT)
Valves / Tubes 4: 215A 215A 215A 215A
Main principle TRF without regeneration
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 2 & 45 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Model RG High Frequency Receiving Equipment SE 2511, SE 2512, SE 2513, SE 2514 - National Electric Signaling Co
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 550 x 230 x 280 mm / 21.7 x 9.1 x 11 inch
Notes
Unit Components Description

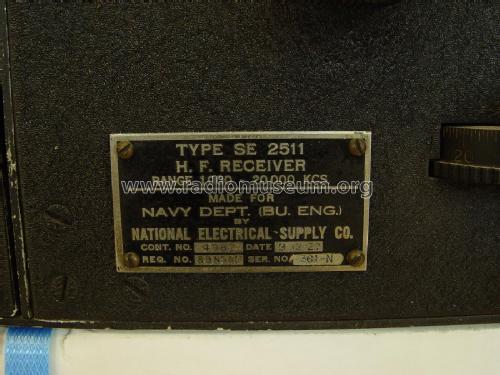

SE 2511 High Frequency Receiver
SE 2512 Tuned RF Amplifier
SE 2513 Inductance System
SE 2514 Cabinet and Filter System

Frequency range: 1 - 20 MHz

Note that the inductance system consists of individual coils contained in a storage case.

Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)

Model page created by Museum Musée des Radios. See "Data change" for further contributors.
