Wavemeter SCR-61

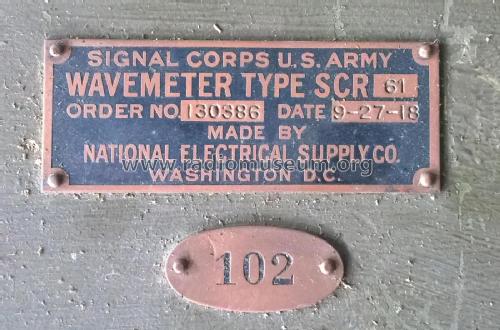

Wavemeter SCR-61; National Electric (ID = 2253122) Military Wavemeter SCR-61; National Electric (ID = 2263461) Military
Wavemeter SCR-61; National Electric (ID = 2263462) Military Wavemeter SCR-61; National Electric (ID = 2263463) Military
Wavemeter SCR-61; National Electric (ID = 2263464) Military
Use red slider bar for more.
Wavemeter SCR-61; National Electric (ID = 2253122) Military
National Electric: Wavemeter SCR-61 [Military] ID = 2253122 1400x1335
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wavemeter SCR-61, National Electric Signaling Co. (NESCO) or Supply; Washington, D.C.:
Collection privée (réf.: 1202,1977)

Country:  United States of America (USA)
Manufacturer / Brand:  National Electric Signaling Co. (NESCO) or Supply; Washington, D.C.
alternative name

National Electric Signaling Co. || National Electrical Supply Co.
Year: 1918 Category: Military Equipment (not Re, Tr or RXT)
Main principle Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Wavemeter SCR-61 - National Electric Signaling Co
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 380 x 270 x 220 mm / 15 x 10.6 x 8.7 inch
Notes

Wavemeter manufactured for Signal Corps, equipped with 3 interchangable coils:

A: 150 - 475 m (630 kHz - 2 MHz)

B: 400 - 1150 m (260 kHz - 750 kHz)

C: 800 - 2600 m (115 kHz - 375 kHz)
Net weight (2.2 lb = 1 kg) 10.3 kg / 22 lb 11 oz (22.687 lb)

Model page created by Museum Musée des Radios. See "Data change" for further contributors.
