- Country
- Germany
- Manufacturer / Brand
- Nestler-matho GmbH & Co. KG; Baden-Baden
- Year
- 1991 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323202
Halogen light!
Timer.
Timer battery A76, 1,5 V.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Radio with other functions
- Power type and voltage

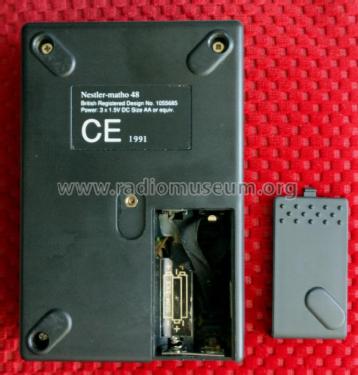

- Batteries / addl. power jack / AA: 3 × 1,5 / A76: 1 × 1,5 & for lamp 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Matho 48 - Nestler-matho GmbH & Co. KG;
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 225 x 102 x 54 mm / 8.9 x 4 x 2.1 inch
- Notes
-

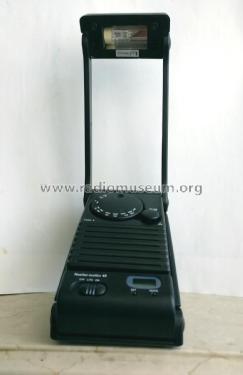

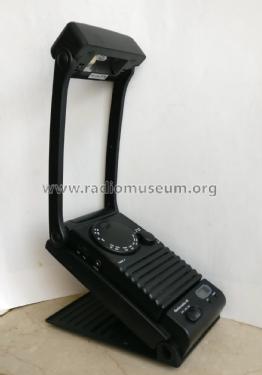

Nestler-Matho 48 is a combined FM/AM clock radio with reading light.

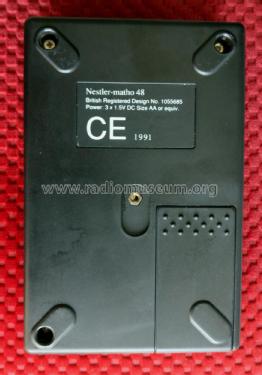

The radio & alarm clock is battery operated, the lamp (12V, 20W) needs an external power supply.British Reg. Design No. 1055685, probably made in Hong Kong.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
