Amperemeter-Voltmeter AVAM 2

Amperemeter-Voltmeter AVAM 2; Neuberger, Josef; (ID = 1463406) Equipment Amperemeter-Voltmeter AVAM 2; Neuberger, Josef; (ID = 1463407) Equipment
Amperemeter-Voltmeter AVAM 2; Neuberger, Josef; (ID = 1463408) Equipment Amperemeter-Voltmeter AVAM 2; Neuberger, Josef; (ID = 1516591) Equipment
Amperemeter-Voltmeter AVAM 2; Neuberger, Josef; (ID = 1516592) Equipment Amperemeter-Voltmeter AVAM 2; Neuberger, Josef; (ID = 1516598) Equipment
Amperemeter-Voltmeter AVAM 2; Neuberger, Josef; (ID = 1516602) Equipment Amperemeter-Voltmeter AVAM 2; Neuberger, Josef; (ID = 1516609) Equipment
Amperemeter-Voltmeter AVAM 2; Neuberger, Josef; (ID = 1516610) Equipment
Use red slider bar for more.
Amperemeter-Voltmeter AVAM 2; Neuberger, Josef; (ID = 1463406) Equipment
Neuberger, Josef;: Amperemeter-Voltmeter AVAM 2 [Equipment] ID = 1463406 900x962
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amperemeter-Voltmeter AVAM 2, Neuberger, Josef; München

Country:  Germany
Manufacturer / Brand:  Neuberger, Josef; München
Year: 1970 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Amperemeter-Voltmeter AVAM 2 - Neuberger, Josef; München
Material Wooden case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 200 x 100 mm / 7.1 x 7.9 x 3.9 inch
Notes

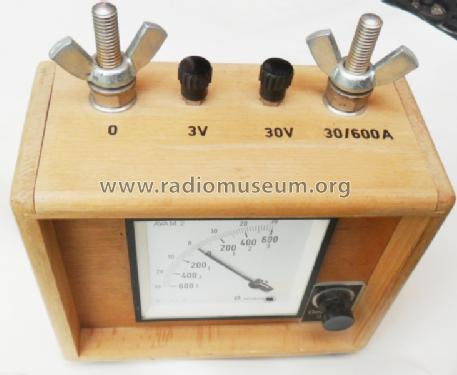

Bench DC Ammeter-Voltmeter, zero central. Ranges: DC +/-3V, +/-30V; DC +/-30A, +/-600A. Special lock nuts for 30 and 600A range.

Net weight (2.2 lb = 1 kg) 1.050 kg / 2 lb 5 oz (2.313 lb)

Model page created by Massimo Follaro. See "Data change" for further contributors.
