• Year
  • 1960 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 108457

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 15 & 1,5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Bakelite case
  • from Radiomuseum.org

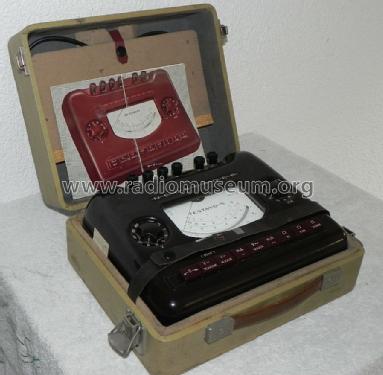

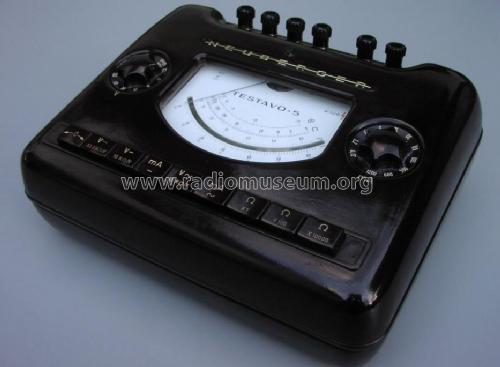

  • Model: Testavo 5 - Neuberger, Josef; München
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 270 x 220 x 110 mm / 10.6 x 8.7 x 4.3 inch
  • Notes
  • Multimeter. 2 Gleichspannungsbereiche - 33,3 kOhm/Volt und 10 kOhm/Volt; Wechselspannung 10 kOhm/Volt; Messgenauigkeit Gleichspannung 1 %; Wechselspannung 1,5 %; Drücken der Taste < o > schaltet Nullpunkt auf Skalenmitte
  • Net weight (2.2 lb = 1 kg)
  • 3.1 kg / 6 lb 13.3 oz (6.828 lb)
  • Author
  • Model page created by Mark Hippenstiel. See "Data change" for further contributors.
