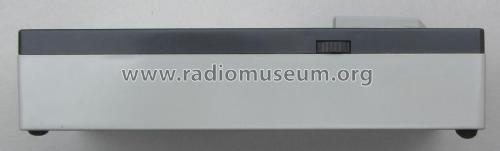

Unavo (Analog-Multimeter) 7

Neuberger, Josef; München

  • Year
  • 1973 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 327485

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 3
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / AA: 1 x 1,5 V & IEC 10 FS: 2 x 15 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Unavo 7 - Neuberger, Josef; München
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 182 x 92 x 40 mm / 7.2 x 3.6 x 1.6 inch
  • Notes
  • Elektronischer Überlastschutz zusätzlich zur Feinsicherung F3,15 A.

  • Net weight (2.2 lb = 1 kg)
  • 0.560 kg / 1 lb 3.7 oz (1.233 lb)
  • Author
  • Model page created by Reinhard Zwirner. See "Data change" for further contributors.
