Funkprüfgerät FUP1A

Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 280769) Equipment

Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 280770) Equipment

Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 280771) Equipment

Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 280772) Equipment
Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 2180437) Equipment Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 2180438) Equipment
Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 280773) Equipment Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 280774) Equipment
Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 280775) Equipment Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 280776) Equipment
Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 280777) Equipment
Use red slider bar for more.

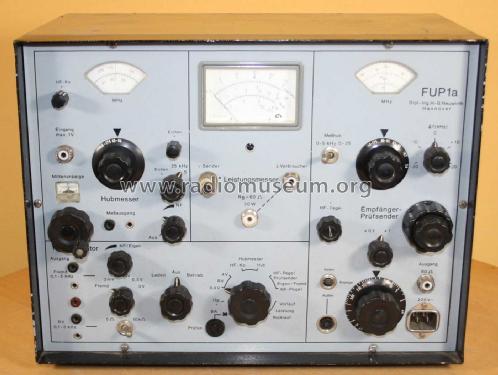

Funkprüfgerät FUP1A; Neuwirth, Dipl.-Ing. (ID = 2180437) Equipment
Neuwirth, Dipl.-Ing.: Funkprüfgerät FUP1A [Equipment] ID = 2180437 1400x1054
Select picture or schematic to display from thumbnails on the right and click for download.
For model Funkprüfgerät FUP1A, Neuwirth, Dipl.-Ing. H.-G.; Hemmingen /Hannover:
ebay.de #272949904137 seller classic-tech

Country:  Germany
Manufacturer / Brand:  Neuwirth, Dipl.-Ing. H.-G.; Hemmingen /Hannover
Year: 1973 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 26:
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 220 / 18 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Funkprüfgerät FUP1A - Neuwirth, Dipl.-Ing. H.-G.;
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 410 x 310 x 190 mm / 16.1 x 12.2 x 7.5 inch
Notes

Funkprüfgerät in drei Messbereichen: 65-80 MHz; 80-95 MHz; 140-175 MHz.

Das Gerät verfügt über einen Hubmesser, Prüfgenerator (Meßsender), NF-Modulationsgenerator, NF-Voltmeter und Senderleistungsmesser mit eingebautem 20-W-Dummyload.

Anschlussmöglichkeit für externen Lautsprecher.

Model page created by Dieter Barkawitz. See "Data change" for further contributors.
